tutorial

for
Pinnacle Edition & Liquid

This tutorial will show you how easy it is to make a simple move from the Pinnacle timeline. Check out the QuickStart Guide for further details, as well as the Frequently Asked Questions.

Open up your editor and place a clip on the timeline.
The clip should be as long as you want the move to be.

NOTE: This should be video clip or a video-size still.
Placing the hi-res still will slow rendering
and may cause other problems.

Make sure the  Effects list is visible.
Scroll down until you come to one called:
"Added" under the "PlugIn Clip FX" section
If it is not in the list, click here

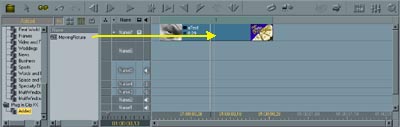

Drag "MovingPicture" over your clip.

The MovingPicture screen will appear.
Click on the Load Picture item in the File menu.
Choose a picture to move.

Drag yellow box to frame up start of move.

Choose time for end of move by clicking on Timeline.
Drag yellow box to frame up the end position of move.
Preview your move with the Viewer player buttons.
Click on the OK button to return to Pinnacle.

You can re-edit the moves by clicking on the Custom Filters button at the end of the clip on your editor's  timeline.

home









Installation for Edition or Liquid Editors

Close Edition, if it is open.

Files  are in self-extracting ZIP format to speed up the downloading process.  Simply double click on the .exe file and it will ask what folder you what to put them in.

Select the the ..\PlugIns\Filter  folder for plug-ins. You may need to create this folder, if it does not exist. Also, make sure that folder is in Edition's Plug-Ins Setting's list, found in the Edition's Control Panel.

Drag the help file, called Moving.hlp to the C:\ folder (the root directory of the c: drive).
